ASTA 40

线性地埋灯

ASTA 40

线性地埋灯

ASTA 40

线性地埋灯

ASTA 40

线性地埋灯

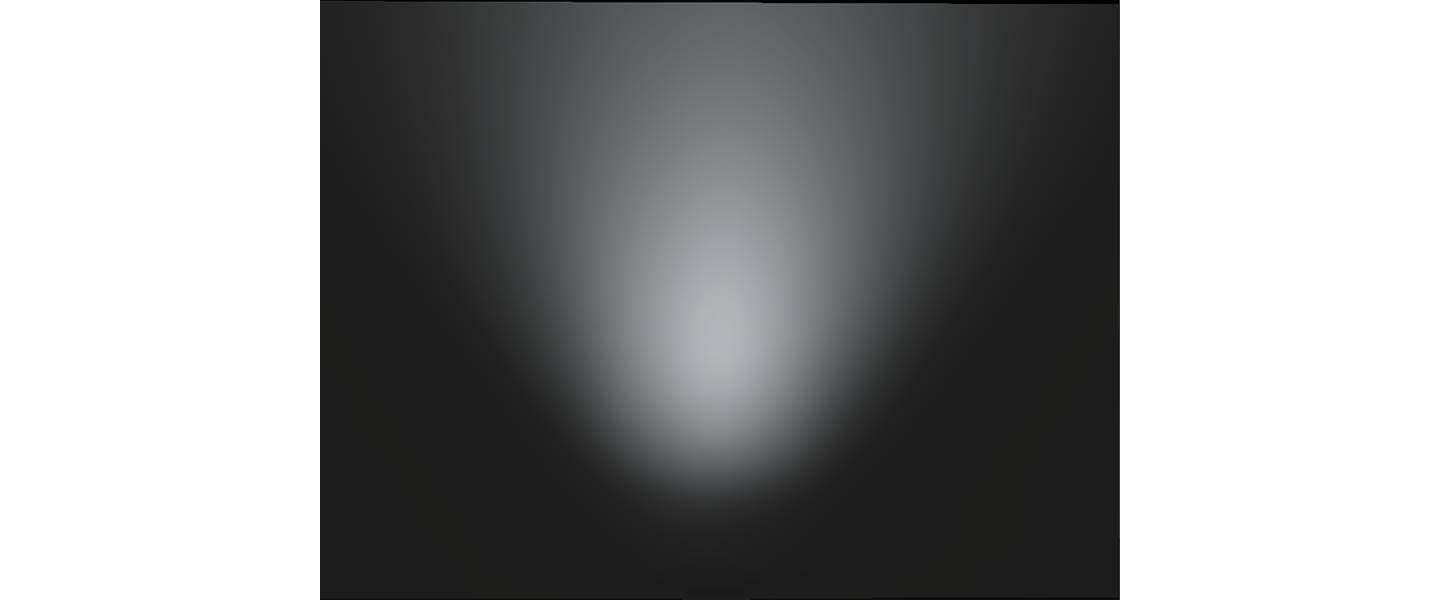

光效图

产品规格:: 灯具类型:线性地埋灯; 光束角:13D 15D 30D 40D 45D 50D 60D 16x27D 16x56D 17x41D; 功率:12W 15W 18W 24W; 尺寸:1000x40x33mm; 预埋件尺寸:有翻边:1000*51*50mm 无翻边:1000*41*39mm; 色温:2700K 3000K 4000K; 重量:2.242kg; 散热器材质:AL6063-T5; 表面工艺:喷粉; 备注:(斜格栅) 为加斜格栅的测试数据

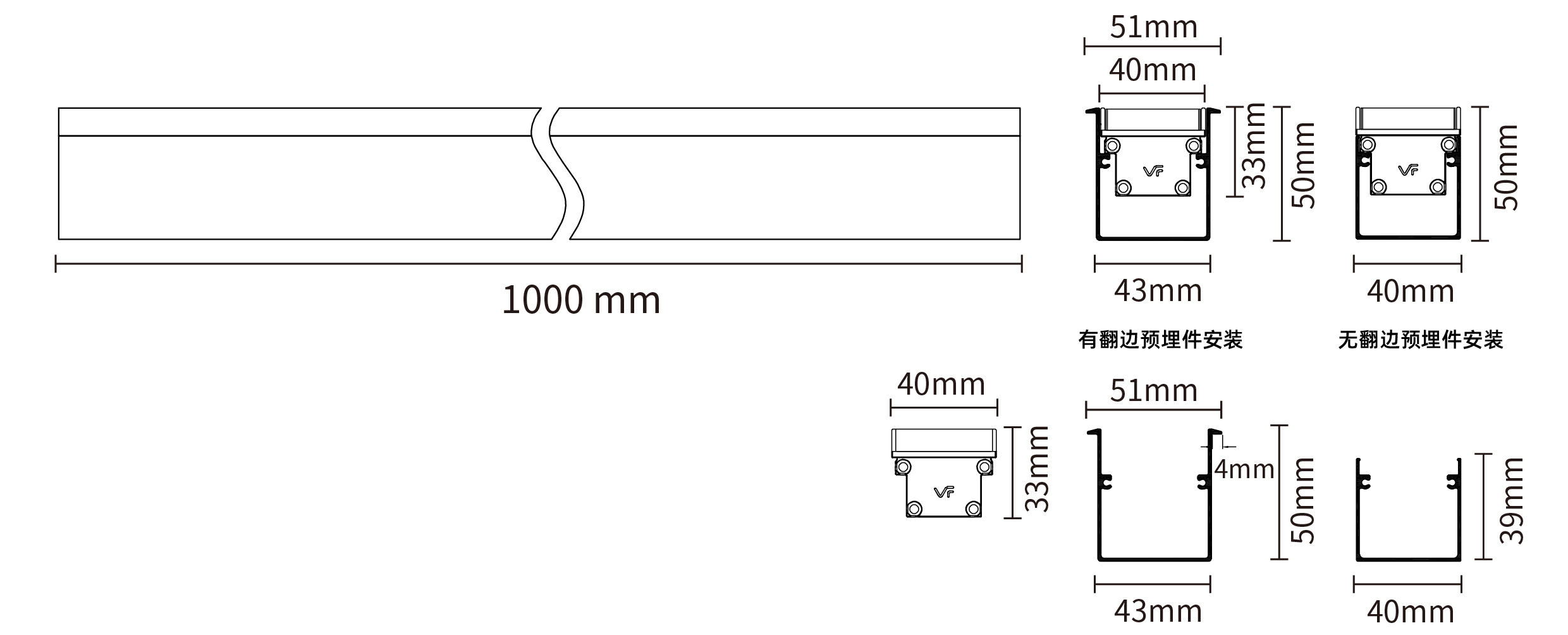

线条图:

产品特征:

可选配件:

反射器颜色:

外框颜色:

型号选择:

功率

功率
12W
15W
18W
24W

光束角

光束角
13°
15°
16x56°
16x27°
17x41°
30°
45°
60°

显示指数

显示指数
Ra>90

色温

色温
2700K
3000K
4000K

Control

Control

调光方式

调光方式
1-Non Dim
3-0-10V调光
4-DALI调光
5-DMX512

边框颜色

边框颜色
户外黑色

反射器颜色

反射器颜色
黑色

防护等级

防护等级
67-IP67

配件

配件
斜格栅
蜂窝网
半丝印玻璃

型号
整灯光通量
功率
光束角
显示指数
色温
Control
规格书
DWG
IES
安装手册
收藏

型号: BB00212-24139027; BB00212-24139030; BB00212-24139040; BB00212-24159027; BB00212-24159030; BB00212-24159040; BB00212-24309027; BB00212-24309030; BB00212-24309040; BB00212-24459027; BB00212-24459030; BB00212-24459040; BB00212-24609027; BB00212-24609030; BB00212-24609040; BB00212-24B19027; BB00212-24B19030; BB00212-24B19040; BB00212-24B29027; BB00212-24B29030; BB00212-24B29040; BB00212-24B39027; BB00212-24B39030; BB00212-24B39040; BB00212-18139027; BB00212-18139030; BB00212-18139040; BB00212-18159027; BB00212-18159030; BB00212-18159040; BB00212-18309027; BB00212-18309030; BB00212-18309040; BB00212-18459027; BB00212-18459030; BB00212-18459040; BB00212-18609027; BB00212-18609030; BB00212-18609040; BB00212-18B19027; BB00212-18B19030; BB00212-18B19040; BB00212-18B29027; BB00212-18B29030; BB00212-18B29040; BB00212-18B39027; BB00212-18B39030; BB00212-18B39040; BB00212-15139027; BB00212-15139030; BB00212-15139040; BB00212-15159027; BB00212-15159030; BB00212-15159040; BB00212-15309027; BB00212-15309030; BB00212-15309040; BB00212-15459027; BB00212-15459030; BB00212-15459040; BB00212-15609027; BB00212-15609030; BB00212-15609040; BB00212-15B19027; BB00212-15B19030; BB00212-15B19040; BB00212-15B29027; BB00212-15B29030; BB00212-15B29040; BB00212-15B39027; BB00212-15B39030; BB00212-15B39040; BB00212-12139027; BB00212-12139030; BB00212-12139040; BB00212-12159027; BB00212-12159030; BB00212-12159040; BB00212-12309027; BB00212-12309030; BB00212-12309040; BB00212-12459027; BB00212-12459030; BB00212-12459040; BB00212-12609027; BB00212-12609030; BB00212-12609040; BB00212-12B19027; BB00212-12B19030; BB00212-12B19040; BB00212-12B29027; BB00212-12B29030; BB00212-12B29040; BB00212-12B39027; BB00212-12B39030; BB00212-12B39040; BB00212(斜格栅)-24139027; BB00212(斜格栅)-24139030; BB00212(斜格栅)-24139040; BB00212(斜格栅)-24159027; BB00212(斜格栅)-24159030; BB00212(斜格栅)-24159040; BB00212(斜格栅)-24309027; BB00212(斜格栅)-24309030; BB00212(斜格栅)-24309040; BB00212(斜格栅)-24459027; BB00212(斜格栅)-24459030; BB00212(斜格栅)-24459040; BB00212(斜格栅)-24609027; BB00212(斜格栅)-24609030; BB00212(斜格栅)-24609040; BB00212(斜格栅)-24B19027; BB00212(斜格栅)-24B19030; BB00212(斜格栅)-24B19040; BB00212(斜格栅)-24B29027; BB00212(斜格栅)-24B29030; BB00212(斜格栅)-24B29040; BB00212(斜格栅)-24B39027; BB00212(斜格栅)-24B39030; BB00212(斜格栅)-24B39040; BB00212(斜格栅)-18139027; BB00212(斜格栅)-18139030; BB00212(斜格栅)-18139040; BB00212(斜格栅)-18159027; BB00212(斜格栅)-18159030; BB00212(斜格栅)-18159040; BB00212(斜格栅)-18309027; BB00212(斜格栅)-18309030; BB00212(斜格栅)-18309040; BB00212(斜格栅)-18459027; BB00212(斜格栅)-18459030; BB00212(斜格栅)-18459040; BB00212(斜格栅)-18609027; BB00212(斜格栅)-18609030; BB00212(斜格栅)-18609040; BB00212(斜格栅)-18B19027; BB00212(斜格栅)-18B19030; BB00212(斜格栅)-18B19040; BB00212(斜格栅)-18B29027; BB00212(斜格栅)-18B29030; BB00212(斜格栅)-18B29040; BB00212(斜格栅)-18B39027; BB00212(斜格栅)-18B39030; BB00212(斜格栅)-18B39040; BB00212(斜格栅)-15139027; BB00212(斜格栅)-15139030; BB00212(斜格栅)-15139040; BB00212(斜格栅)-15159027; BB00212(斜格栅)-15159030; BB00212(斜格栅)-15159040; BB00212(斜格栅)-15309027; BB00212(斜格栅)-15309030; BB00212(斜格栅)-15309040; BB00212(斜格栅)-15459027; BB00212(斜格栅)-15459030; BB00212(斜格栅)-15459040; BB00212(斜格栅)-15609027; BB00212(斜格栅)-15609030; BB00212(斜格栅)-15609040; BB00212(斜格栅)-15B19027; BB00212(斜格栅)-15B19030; BB00212(斜格栅)-15B19040; BB00212(斜格栅)-15B29027; BB00212(斜格栅)-15B29030; BB00212(斜格栅)-15B29040; BB00212(斜格栅)-15B39027; BB00212(斜格栅)-15B39030; BB00212(斜格栅)-15B39040; BB00212(斜格栅)-12139027; BB00212(斜格栅)-12139030; BB00212(斜格栅)-12139040; BB00212(斜格栅)-12159027; BB00212(斜格栅)-12159030; BB00212(斜格栅)-12159040; BB00212(斜格栅)-12309027; BB00212(斜格栅)-12309030; BB00212(斜格栅)-12309040; BB00212(斜格栅)-12459027; BB00212(斜格栅)-12459030; BB00212(斜格栅)-12459040; BB00212(斜格栅)-12609027; BB00212(斜格栅)-12609030; BB00212(斜格栅)-12609040; BB00212(斜格栅)-12B19027; BB00212(斜格栅)-12B19030; BB00212(斜格栅)-12B19040; BB00212(斜格栅)-12B29027; BB00212(斜格栅)-12B29030; BB00212(斜格栅)-12B29040; BB00212(斜格栅)-12B39027; BB00212(斜格栅)-12B39030; BB00212(斜格栅)-12B39040

整灯光通量: 2240LM; 2358LM; 2476LM; 2265LM; 2384LM; 2503LM; 2472LM; 2472LM; 2595LM; 2339LM; 2462LM; 2585LM; 1910LM; 2010LM; 2111LM; 2173LM; 2288LM; 2402LM; 1988LM; 2092LM; 2197LM; 1834LM; 1930LM; 2027LM; 1680LM; 1768LM; 1857LM; 1698LM; 1788LM; 1877LM; 2472LM; 1854LM; 1946LM; 1754LM; 1847LM; 1939LM; 1432LM; 1507LM; 1583LM; 1630LM; 1716LM; 1801LM; 1491LM; 1569LM; 1648LM; 1375LM; 1448LM; 1520LM; 1400LM; 1473LM; 1547LM; 1415LM; 1490LM; 1564LM; 2472LM; 1545LM; 1622LM; 1462LM; 1539LM; 1616LM; 1193LM; 1256LM; 1319LM; 1358LM; 1430LM; 1501LM; 1242LM; 1308LM; 1373LM; 1146LM; 1206LM; 1267LM; 1120LM; 1179LM; 1238LM; 1132LM; 1192LM; 1251LM; 2472LM; 1236LM; 1297LM; 1169LM; 1231LM; 1292LM; 955LM; 1005LM; 1055LM; 1086LM; 1144LM; 1201LM; 994LM; 1046LM; 1098LM; 917LM; 965LM; 1013LM; 1330LM; 1400LM; 1470LM; 1386LM; 1459LM; 1532LM; 1424LM; 1499LM; 1574LM; 1376LM; 1449LM; 1521LM; 998LM; 1050LM; 1103LM; 1295LM; 1363LM; 1431LM; 1157LM; 1218LM; 1279LM; 1054LM; 1109LM; 1165LM; 998LM; 1050LM; 1103LM; 1039LM; 1094LM; 1149LM; 1068LM; 1124LM; 1180LM; 1032LM; 1086LM; 1141LM; 748LM; 788LM; 827LM; 971LM; 1022LM; 1073LM; 868LM; 914LM; 959LM; 790LM; 832LM; 874LM; 831LM; 875LM; 919LM; 866LM; 912LM; 957LM; 890LM; 937LM; 983LM; 860LM; 905LM; 951LM; 623LM; 656LM; 689LM; 809LM; 852LM; 894LM; 723LM; 761LM; 799LM; 658LM; 693LM; 728LM; 665LM; 700LM; 735LM; 693LM; 729LM; 766LM; 712LM; 749LM; 787LM; 688LM; 724LM; 760LM; 499LM; 525LM; 551LM; 647LM; 681LM; 715LM; 578LM; 609LM; 639LM; 527LM; 554LM; 582LM

功率: 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W

光束角: 13°; 13°; 13°; 15°; 15°; 15°; 30°; 30°; 30°; 45°; 45°; 45°; 60°; 60°; 60°; 16x27°; 16x27°; 16x27°; 17x41°; 17x41°; 17x41°; 16x56°; 16x56°; 16x56°; 13°; 13°; 13°; 15°; 15°; 15°; 30°; 30°; 30°; 45°; 45°; 45°; 60°; 60°; 60°; 16x27°; 16x27°; 16x27°; 17x41°; 17x41°; 17x41°; 16x56°; 16x56°; 16x56°; 13°; 13°; 13°; 15°; 15°; 15°; 30°; 30°; 30°; 45°; 45°; 45°; 60°; 60°; 60°; 16x27°; 16x27°; 16x27°; 17x41°; 17x41°; 17x41°; 16x56°; 16x56°; 16x56°; 13°; 13°; 13°; 15°; 15°; 15°; 30°; 30°; 30°; 45°; 45°; 45°; 60°; 60°; 60°; 16x27°; 16x27°; 16x27°; 17x41°; 17x41°; 17x41°; 16x56°; 16x56°; 16x56°; 13°; 13°; 13°; 15°; 15°; 15°; 30°; 30°; 30°; 45°; 45°; 45°; 60°; 60°; 60°; 16x27°; 16x27°; 16x27°; 17x41°; 17x41°; 17x41°; 16x56°; 16x56°; 16x56°; 13°; 13°; 13°; 15°; 15°; 15°; 30°; 30°; 30°; 45°; 45°; 45°; 60°; 60°; 60°; 16x27°; 16x27°; 16x27°; 17x41°; 17x41°; 17x41°; 16x56°; 16x56°; 16x56°; 13°; 13°; 13°; 15°; 15°; 15°; 30°; 30°; 30°; 45°; 45°; 45°; 60°; 60°; 60°; 16x27°; 16x27°; 16x27°; 17x41°; 17x41°; 17x41°; 16x56°; 16x56°; 16x56°; 13°; 13°; 13°; 15°; 15°; 15°; 30°; 30°; 30°; 45°; 45°; 45°; 60°; 60°; 60°; 16x27°; 16x27°; 16x27°; 17x41°; 17x41°; 17x41°; 16x56°; 16x56°; 16x56°

显示指数: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

色温: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K

Control

规格书

DWG

IES

安装手册

收藏

产品及项目检索

ASTA 40

线性地埋灯

光效图

型号选择:

应用项目

相关产品
