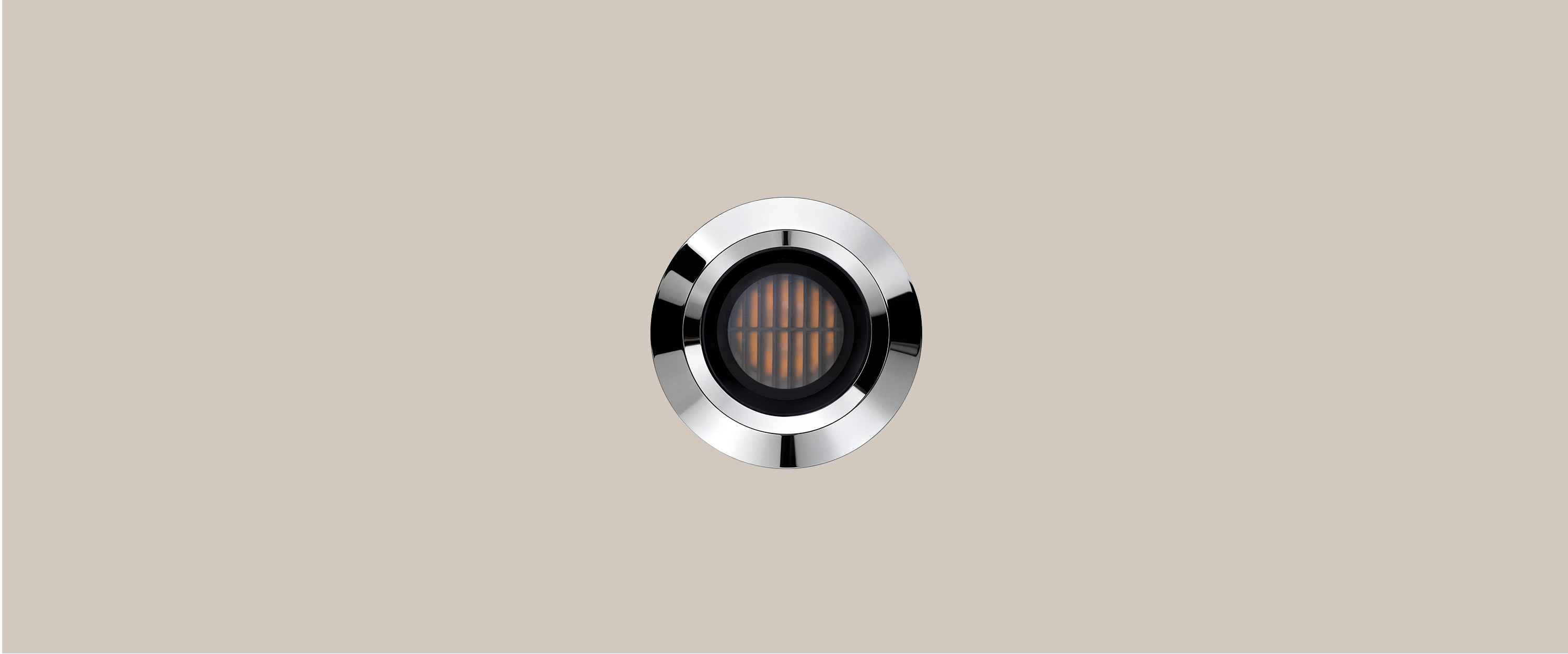

ASTA II 50

地埋灯

ASTA II 50

地埋灯

ASTA II 50

地埋灯

光效图

产品规格:: 灯具类型:地埋灯; 光束角:15D 20D 24D 30D 32D 50D 55D; 功率:2W 3W 4W; 灯具尺寸:φ50x72mm; 预埋件尺寸:φ45x100mm/φ100x120mm; 重量:0.25kg 0.44kg; 色温:2700K 3000K 4000K; 散热器材质:①室内:铝 ②户外:不锈钢; 表面工艺:喷粉; 备注:(斜格栅) 为加斜格栅的测试数据

线条图:

产品特征:

可选配件:

反射器颜色:

外框颜色:

型号选择:

功率

功率
2W
3W
4W

光束角

光束角
15°
20°
24°
32°
36°
45°

显示指数

显示指数
>90

色温

色温
2700K
3000K
4000K

Control

Control
ON/OFF//0-10V/DALI/DMX

调光方式

调光方式
1-Non Dim
3-0-10V调光
4-DALI调光
5-DMX512

边框颜色

边框颜色
不锈钢本色

反射器颜色

反射器颜色
无

防护等级

防护等级
65-IP65
67-IP67

配件

配件
蜂窝网
丝印玻璃

型号
整灯光通量
功率
光束角
显示指数
色温
Control
规格书
DWG
IES
安装手册
收藏

型号: BB00210-02159027; BB00210-02159030; BB00210-02159040; BB00210(斜格栅)-02209027; BB00210(斜格栅)-02209030; BB00210(斜格栅)-02209040; BB00210-02249027; BB00210-02249030; BB00210-02249040; BB00210(斜格栅)-02249027; BB00210(斜格栅)-02249030; BB00210(斜格栅)-02249040; BB00210-02369027; BB00210-02369030; BB00210-02369040; BB00210(斜格栅)-02329027; BB00210(斜格栅)-02329030; BB00210(斜格栅)-02329040; BB00210-02459027; BB00210-02459030; BB00210-02459040; BB00210(斜格栅)-02369027; BB00210(斜格栅)-02369030; BB00210-03159027; BB00210-03159030; BB00210-03159040; BB00210(斜格栅)-03209027; BB00210(斜格栅)-03209030; BB00210(斜格栅)-03209040; BB00210-03249027; BB00210-03249030; BB00210-03249040; BB00210(斜格栅)-03249027; BB00210(斜格栅)-03249030; BB00210(斜格栅)-03249040; BB00210-03369027; BB00210-03369030; BB00210-03369040; BB00210(斜格栅)-03329027; BB00210(斜格栅)-03329030; BB00210(斜格栅)-03329040; BB00210-03459027; BB00210-03459030; BB00210-03459040; BB00210(斜格栅)-03369027; BB00210(斜格栅)-03369030; BB00210(斜格栅)-03369040; BB00210-04159027; BB00210-04159030; BB00210-04159040; BB00210(斜格栅)-04209027; BB00210(斜格栅)-04209030; BB00210(斜格栅)-04209040; BB00210-04249027; BB00210-04249030; BB00210-04249040; BB00210(斜格栅)-04249027; BB00210(斜格栅)-04249030; BB00210(斜格栅)-04249040; BB00210-04369027; BB00210-04369030; BB00210-04369040; BB00210(斜格栅)-04329027; BB00210(斜格栅)-04329030; BB00210(斜格栅)-04329040; BB00210-04459027; BB00210-04459030; BB00210-04459040; BB00210(斜格栅)-04369027; BB00210(斜格栅)-04369030; BB00210(斜格栅)-04369040

整灯光通量: 152LM; 160LM; 168LM; 59LM; 62LM; 65LM; 154LM; 162LM; 170LM; 57LM; 60LM; 63LM; 135LM; 143LM; 150LM; 47LM; 49LM; 52LM; 105LM; 111LM; 116LM; 38LM; 36LM; 228LM; 240LM; 252LM; 88LM; 93LM; 98LM; 231LM; 244LM; 256LM; 86LM; 91LM; 95LM; 203LM; 214LM; 225LM; 70LM; 74LM; 78LM; 158LM; 166LM; 175LM; 52LM; 54LM; 57LM; 304LM; 320LM; 336LM; 118LM; 124LM; 131LM; 309LM; 325LM; 341LM; 115LM; 121LM; 127LM; 271LM; 286LM; 300LM; 94LM; 99LM; 104LM; 211LM; 222LM; 233LM; 69LM; 73LM; 76LM

功率: 2W; 2W; 2W; 2W; 2W; 2W; 2W; 2W; 2W; 2W; 2W; 2W; 2W; 2W; 2W; 2W; 2W; 2W; 2W; 2W; 2W; 2W; 2W; 3W; 3W; 3W; 3W; 3W; 3W; 3W; 3W; 3W; 3W; 3W; 3W; 3W; 3W; 3W; 3W; 3W; 3W; 3W; 3W; 3W; 3W; 3W; 3W; 4W; 4W; 4W; 4W; 4W; 4W; 4W; 4W; 4W; 4W; 4W; 4W; 4W; 4W; 4W; 4W; 4W; 4W; 4W; 4W; 4W; 4W; 4W; 4W

光束角: 15°; 15°; 15°; 20°; 20°; 20°; 24°; 24°; 24°; 24°; 24°; 24°; 36°; 36°; 36°; 32°; 32°; 32°; 45°; 45°; 45°; 36°; 36°; 15°; 15°; 15°; 20°; 20°; 20°; 24°; 24°; 24°; 24°; 24°; 24°; 36°; 36°; 36°; 32°; 32°; 32°; 45°; 45°; 45°; 36°; 36°; 36°; 15°; 15°; 15°; 20°; 20°; 20°; 24°; 24°; 24°; 24°; 24°; 24°; 36°; 36°; 36°; 32°; 32°; 32°; 45°; 45°; 45°; 36°; 36°; 36°

显示指数: >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90; >90

色温: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 4000K; 3000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K

Control: ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX

规格书

DWG

IES

安装手册

收藏
