ASTA 138
窄边可调角地埋灯
ASTA 138
窄边可调角地埋灯
ASTA 138
窄边可调角地埋灯

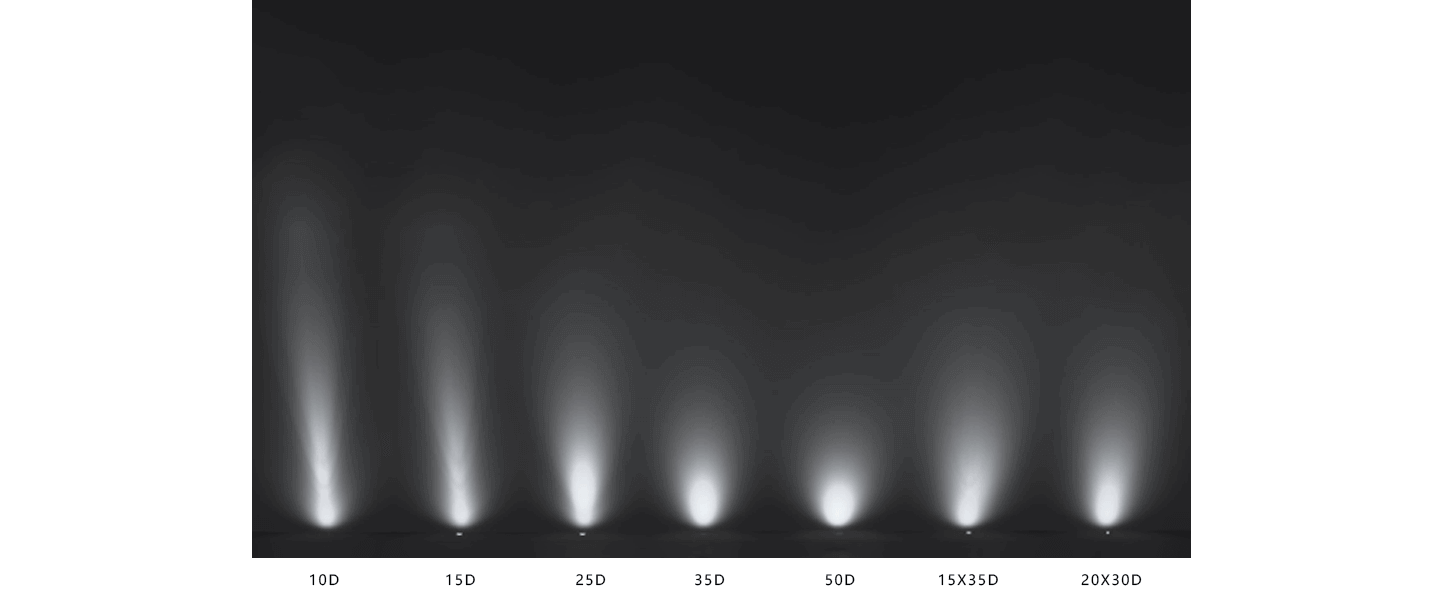

光效图
- 产品规格:
- 灯具类型:窄边可调角地埋灯
- 光束角:10D 15D 25D 35D 50D 15X25D 20X30D
- 功率:7W
- 灯具尺寸:φ138*89mm
- 预埋件尺寸:φ138*180mm
- 重量:1.7kg
- 散热器材质:铝
- 表面工艺:烤漆
- 色温:2700K 3000K 4000K

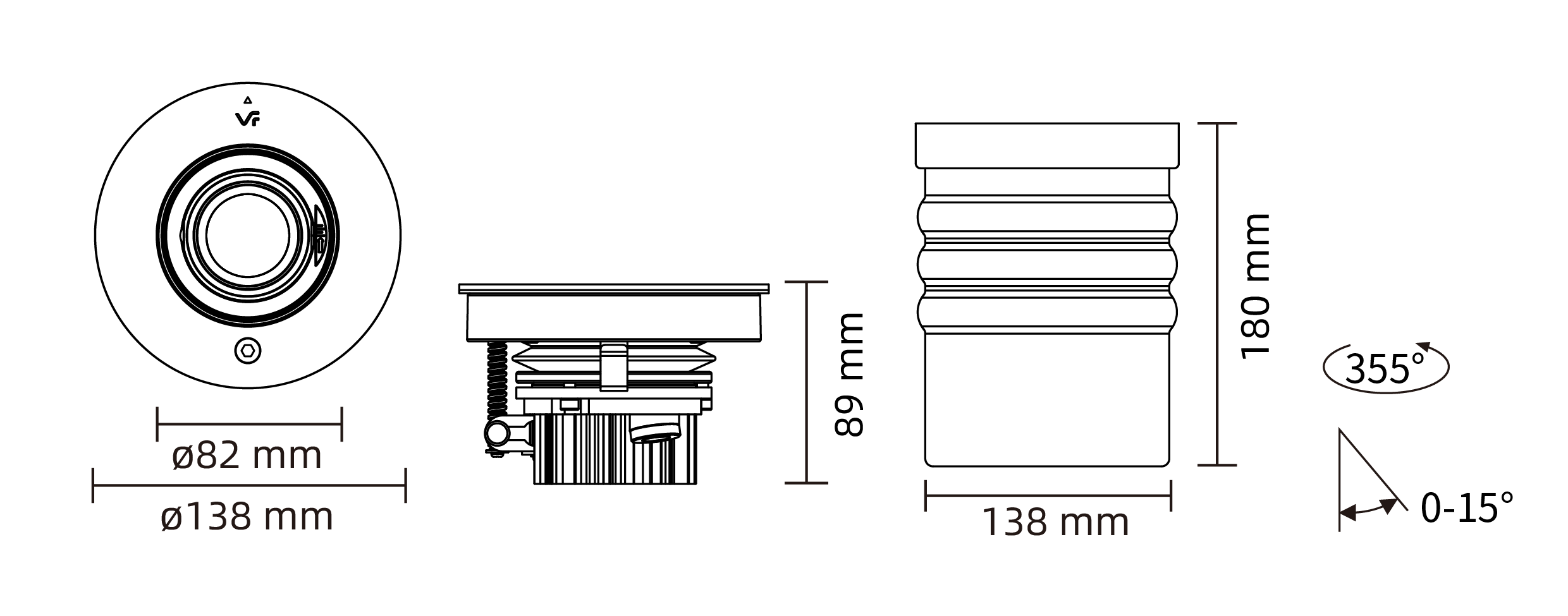

- 线条图:
- 产品特征:
- 可选配件:
- 反射器颜色:
- 外框颜色:
型号选择:功率- 功率
- 7W
光束角- 光束角
- 10°
- 15°
- 15X35°
- 20X30°
- 25°
- 35°
- 50°
显示指数- 显示指数
- >80
色温- 色温
- 2700K
- 3000K
- 4000K
Control- Control
- ON/OFF/DALI/DMX512
调光方式- 调光方式
- 1-Non Dim
- 4-DALI调光
- 5-DMX512
边框颜色- 边框颜色
- 不锈钢本色
反射器颜色- 反射器颜色
- 无
防护等级- 防护等级
- 67-IP67
配件- 配件
- 蜂窝网
功率
- 功率
- 7W
光束角
- 光束角
- 10°
- 15°
- 15X35°
- 20X30°
- 25°
- 35°
- 50°
显示指数
- 显示指数
- >80
色温
- 色温
- 2700K
- 3000K
- 4000K
Control
- Control
- ON/OFF/DALI/DMX512
调光方式
- 调光方式
- 1-Non Dim
- 4-DALI调光
- 5-DMX512
边框颜色
- 边框颜色
- 不锈钢本色
反射器颜色
- 反射器颜色
- 无
防护等级
- 防护等级
- 67-IP67
配件
- 配件
- 蜂窝网
型号
整灯光通量
功率
光束角
显示指数
色温
Control
规格书
DWG
IES
安装手册
